I got a question. I never quite understand how Tor-M1/HQ-17 works -

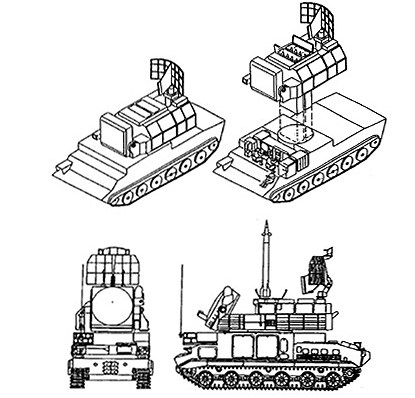

Have a look at this photo:




The missile is obviously almost as tall as the height of the whole tank chassis, but the upper 'turret' part rotates! So how do they store the missiles so when the turret does rotate it doesn't get snap it half by the lower chassis?


Totoro

Captain
VIP Professional
the same way any manned tank turret works. There are people inside it, but they are all inside a tub, so to speak, a bottom part of the turret that turns inside a circular hole in the body of the tank.


Ultra

Junior Member
the same way any manned tank turret works. There are people inside it, but they are all inside a tub, so to speak, a bottom part of the turret that turns inside a circular hole in the body of the tank.

I think I finally get it now, the missiles are housed in its storage cabin which rotates along the vertical axis inside the circular tub.


I got confused because when I saw some of the pictures and it looks like the missile openings (hence the missile housing) is outside the circular tub...



It is especially apparent when the turret is turning and the missile just fire out and it looks as if a straight missile can't be housed in that compartment without snapping.

Anyway, thanks for clarifying! :)


FORBIN

Lieutenant General
Registered Member
  • Thread Starter Thread Starter
  • #16
Cher compatriote :)
Yes 1st Batt of 4th AD BGD is equiped with HQ-16, 6 TEL as all HQ-16 batalions.
This brigade have her HQ to Shijiazhuang (Hebei) now for this batalion ?


rambo54

New Member
Registered Member
Thanks FORBIN!
I looked all around in Shijiazhuang but couldn't find this location :-(
Thanks you anyhow for your response
Greetings from rambo54 and Germany


Totoro

Captain
VIP Professional
does anyone have any info about ongoing hq9 production during all these years? Has it been steady? Sean O'Connor, before he went inactive, found indication for 15+1 active hq-9 batteries in his 2013 analysis. (+1 being a suposed PLAN battery) Now that anylsis also used images that are of various dates, some recent, some perhaps a few years old. Anyhow, one could realistically assume that at least 3 if not more years of production has been done since. But when did the production start?
And how do we know if PLA stopped ordering hq9? Perhaps production capacity has now for some time been more preoccupied with naval variant.

Last edited:

Jeff Head

General
Staff member
Super Moderator
Just to ensure everyone knows.

We have two PLA Anti-Air System Threads. I have edited their names to make sure the differentiation is clear.

This one:

PLA Anti-Air Missile (SAM) Systems

And:

PLA Anti-Air Gun Systems

These names should be self explanatory.

Thanks.

DO NOT RESPOND TO THIS MODERATION


newguy02

Junior Member
Registered Member
Not Sure how reliable this is:
Please, Log in or Register to view URLs content!

To me this sounds a bit unlikely, as China already has so many different kinds of Anti-Air Missiles that purchasing the S-400 sounds a bit off, but who knows.
