Deino said:
J-20AS and J-20B (?) again :p ... But are they real?
@四川地产界高层-军事画匠 is famous and best known for his magnificent GG/PS-works!

View attachment 104601
View attachment 104603
Click to expand...
I would tend to believe that these are CGs.

Besides, why are there irregular yellow stripes behind the canopy of the J-20AS in the first photo?

Also the door of the front landing gear has a similar yellow stripe in the same photo. Unless that is a reflection of the sunset sunlight, of course.

by78

by78

General
A movie poster vs the real thing.


Deino

Deino

Lieutenant General
Staff member
Super Moderator
Registered Member

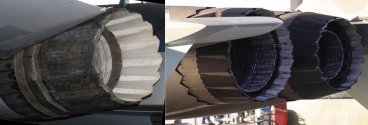

Interesting comparison of the afterburner nozzles of both the Su-57's future Saturn izdeliye 30 engine vs the J-20A's current WS-10C. would be even more interesting to compare the izdeliye 30 vs the WS-15.

Izd. 30 - WS-10Cjpg.jpg

B

Biscuits

Major
Registered Member
Deino said:
Interesting comparison of the afterburner nozzles of both the Su-57's future Saturn izdeliye 30 engine vs the J-20A's current WS-10C. would be even more interesting to compare the izdeliye 30 vs the WS-15.

View attachment 104656
Click to expand...
What is the major difference that one would look at?

To my completely amateur in aerospace eyes, the only thing I can see is that the WS10C build quality looks way more tight and clean, while the Izd 30 almost look a bit rugged.

siegecrossbow

siegecrossbow

General
Staff member
Super Moderator
Biscuits said:
What is the major difference that one would look at?

To my completely amateur in aerospace eyes, the only thing I can see is that the WS10C build quality looks way more tight and clean, while the Izd 30 almost look a bit rugged.
Click to expand...

I think it is the fact that the outer nozzle on izdeliye 30 use metal instead of of ceramic or composite so it has a bit of corroded feel. If you look at the inner petals on WS-10, which are metal, they also look really scratched up.

Deino

Deino

Lieutenant General
Staff member
Super Moderator
Registered Member
Biscuits said:
What is the major difference that one would look at?

To my completely amateur in aerospace eyes, the only thing I can see is that the WS10C build quality looks way more tight and clean, while the Izd 30 almost look a bit rugged.
Click to expand...
siegecrossbow said:
I think it is the fact that the outer nozzle on izdeliye 30 use metal instead of of ceramic or composite so it has a bit of corroded feel. If you look at the inner petals on WS-10, which are metal, they also look really scratched up.
Click to expand...

And that the WS-10C is mixing cold air thru the gap at the serrated fuselage, and also additionally, fan bypass, around the core exhaust.
