J-20 5th Gen Fighter Thread VI

[Air Force Brat]

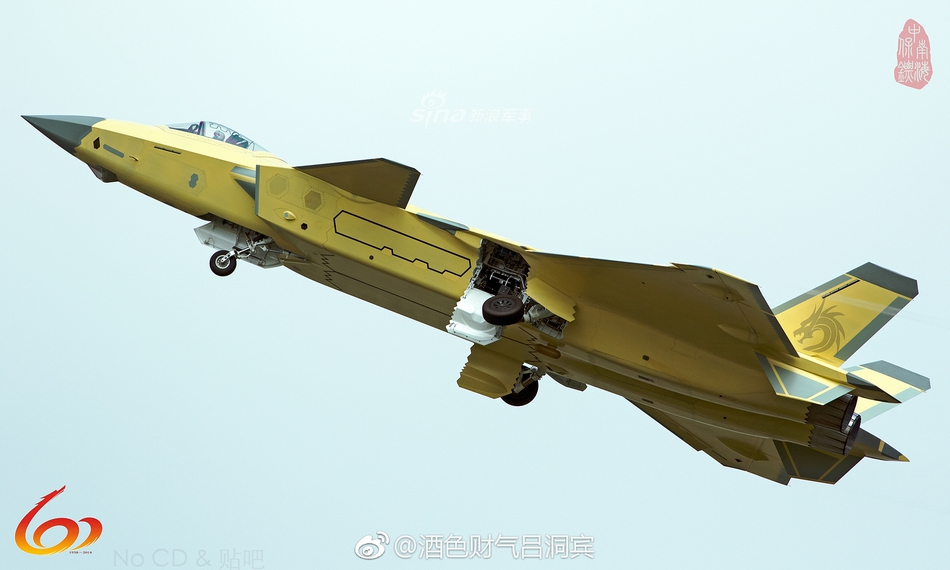

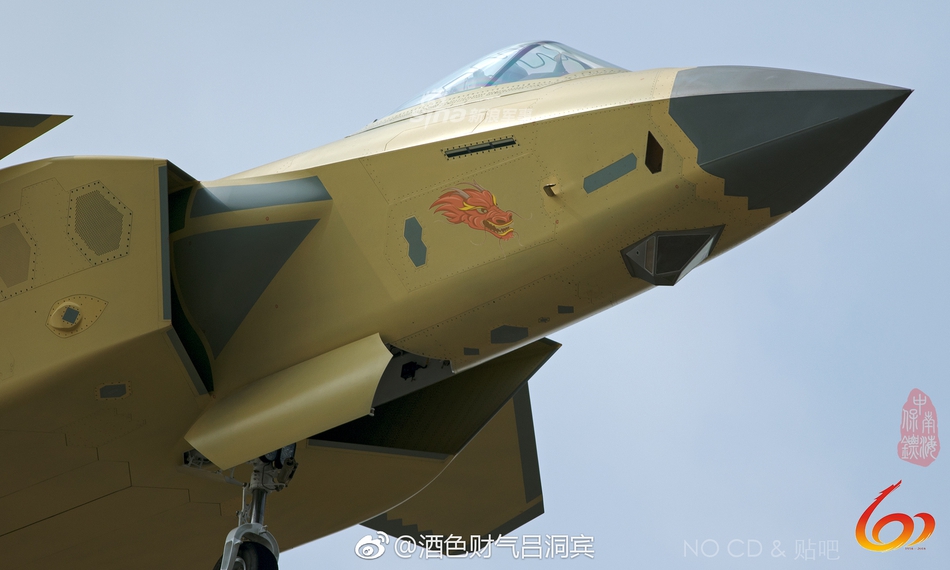

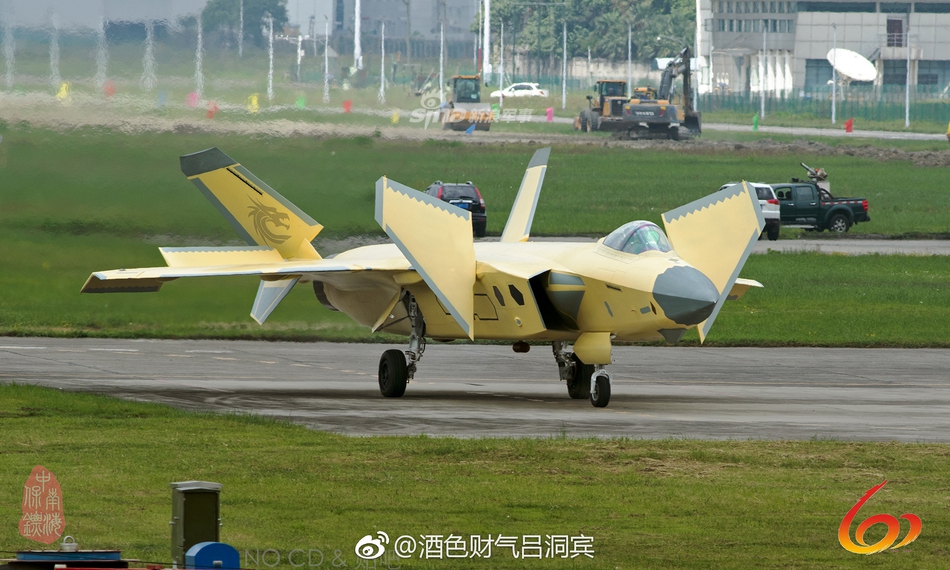

A beautiful batch of photos via LKJ86
View attachment 48110 View attachment 48111 View attachment 48112 View attachment 48113

Nice, and notice the "meta-material" has been applied to all the leading and trailing edges, in and around the intakes, and covering the exterior surfaces of the ventral fins. The "primer birds" have been a real treat to see the underlying detail that has gone into construction of the J-20, these details prove just how serious they have been about lowering the RCS of the J-20, lots of detail work.



[Deino]

Nice, and notice the "meta-material" has been applied to all the leading and trailing edges, in and around the intakes, and covering the exterior surfaces of the ventral fins. The "primer birds" have been a real treat to see the underlying detail that has gone into construction of the J-20, these details prove just how serious they have been about lowering the RCS of the J-20, lots of detail work.

And why do you think this is "meta material"?



[Air Force Brat]

And why do you think this is "meta material"?

It overlays areas critical to RCS reduction and according to the recent "press reveal", "meta material" is used extensively in the J-20 in order to reduce RCS.

I'm rather certain that the F-22 and F-35 also use a US version of "meta material" extensively.

The J-20 appears to have "meta material" bonded on to the surfaces which would most naturally be "reflective" to radar waves, by incorporating this material to "absorb" rather than reflect, overall RCS is very significantly reduced.



[SpicySichuan]

A beautiful batch of photos via LKJ86
View attachment 48110 View attachment 48111 View attachment 48112 View attachment 48113

Still using Russian engine?



[Air Force Brat]

Still using Russian engine?

On most of the fleet, there is at least one WS-10 equipped J-20 however...



[davidau]

they look awesome [colour scheme for Army Day celebration?] ..but..not sure if posted before...
..waiting for WS 15 before mass-production...



[vincent]

they look awesome [colour scheme for Army Day celebration?] ..but..not sure if posted before...
..waiting for WS 15 before mass-production...

Already posted, all you had to do is check the previous page
Or maybe you just want to increase your post count



[Hyperwarp]

Still using Russian engine?

Yes (Most likely a Salut AL-31FN variant custom made for the J-20). Nobody here knows what exactly it is (though I have a nagging feeling flateric knows what the engine is).



[Air Force Brat]

Yes (Most likely a Salut AL-31FN variant custom made for the J-20). Nobody here knows what exactly it is (though I have nagging feeling flateric knows what the engine is).

more than likely Warpy, LOL, we don't much news of where the WS-15 development currently stands, so seeing the WS-10 is a least encouraging...

I would concur that the AL-31FN was the most likely variant, though Deino raised a question of it being the AL-31FM??



[Figaro]

Still using Russian engine?

Only prototypes 2021 and 2022 are using WS-10X engines ... you can tell by the nozzles. More than likely, the current J-20s in mass production are using an AL-31F variant.
