I hear flight of the bumblebees.I can already imagine and hear the song " Ride of the Valkyries" in the background.
They didn't fly very far.
Chinese UAV/UCAV development
- Thread starter AssassinsMace
- Start date
- Status
They didn't fly very far.
Equation
Lieutenant General
Still they did flew over a small body of water to get to the island for delivery.
Three variations of "Cloud Shadow" are available.
CS-1: Image Reconnaissance with LOROP Camera and SAR
CS-2: Electronic Reconnaissance with fuselage antenna ELINT 400km COMINT 200km
CS-3: Reconnaissance Strike version, Target range 50km
CS-1: Image Reconnaissance with LOROP Camera and SAR
CS-2: Electronic Reconnaissance with fuselage antenna ELINT 400km COMINT 200km
CS-3: Reconnaissance Strike version, Target range 50km
Last edited:
On Nov. 13, the first TYW-1 (Sky Hawk) UAV rolled out at Beihang Changying Aviation Technology Co., Ltd. The aircraft is developed by Beihang University based on BZK-005.
Main features:
Composite materials content: >70% final target >80%
Max. Takeoff Weight: 1500kg Max. Payload: 370kg
Wingspan: 18m Length: 9.85 Height: 2.5m
Duration: 40h Max. Speed: 200km/h Service Ceiling: 7500m
Main features:
Composite materials content: >70% final target >80%
Max. Takeoff Weight: 1500kg Max. Payload: 370kg
Wingspan: 18m Length: 9.85 Height: 2.5m
Duration: 40h Max. Speed: 200km/h Service Ceiling: 7500m
Hendrik_2000
Lieutenant General
Drone a day keep the enemy away. Never ending model of new drone Here is the video of Chinese-made drone TYW-1 or Tianying, with all its components made in China, is scheduled to roll off the production line on Monday.
Dubai air show present China new line of UAV see the control panel of the UAV very high tech
Dubai air show present China new line of UAV see the control panel of the UAV very high tech
by78
General
AVIC UAVs at the Dubai Airshow. High-resolution photos...

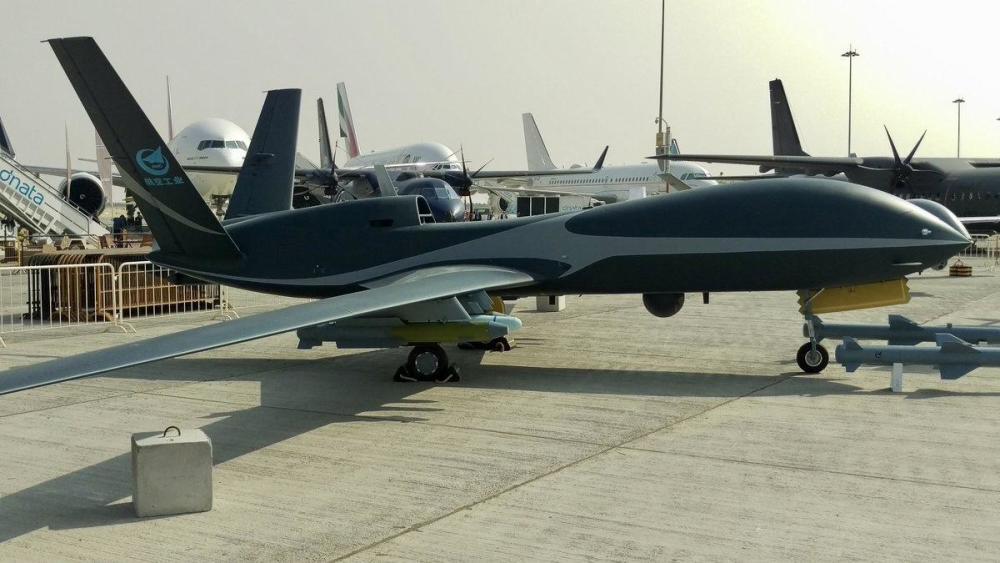

CS-1, CS-2, and CS-3...
With these gentleman standing next to it, you can get a decent idea of the UAV length-wise:

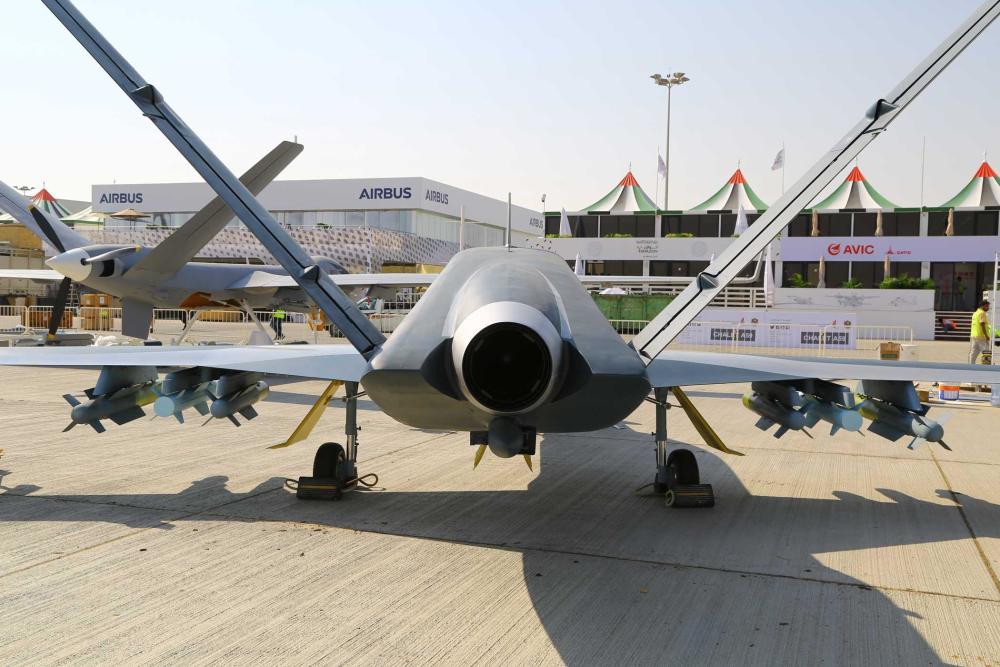

Unlike its counterpart in domestic service, it doesn't have a stealthy exhaust nozzle:
YJ-9E missile: 105kg, 15-25km range, air-to-ground:
CS-1, CS-2, and CS-3...
With these gentleman standing next to it, you can get a decent idea of the UAV length-wise:
Unlike its counterpart in domestic service, it doesn't have a stealthy exhaust nozzle:
YJ-9E missile: 105kg, 15-25km range, air-to-ground:
by78
General
Continued...
Ground control console. I wish/hope a similar console setup could be had on the 055 DDG. I understand the operational and man-machine interface requirements are different, but still, a variant of this would be cool...
Touch screen interface:
Gives you an idea of the side panels angle relative to the operator:
Ground control console. I wish/hope a similar console setup could be had on the 055 DDG. I understand the operational and man-machine interface requirements are different, but still, a variant of this would be cool...
Touch screen interface:
Gives you an idea of the side panels angle relative to the operator:
