052C/052D Class Destroyers

T

Tam

Brigadier
Registered Member
I will illustrate to make it simpler.

There is one on top of the bridge and another one on the CIWS.



Similar product for civilian use.

images (19).jpeg

Please, Log in or Register to view URLs content!


Similar products from other countries for comparison.

Please, Log in or Register to view URLs content!


images (20).jpeg

There are a total of three in this 054A. One on top of the bridge, one with the gunnery radar and another on the side of the mast.



There is also a camera on the Type 344 gunnery radar used with the destroyers. This enables the radar to track the target visually and aim the main guns at it. Even the outdated Type 345 fire control radar for the HQ-7 system has EO camera which lets the missile to be guided visually.



Last edited:
james smith esq

james smith esq

Senior Member
Registered Member
Tam said:
I will illustrate to make it simpler.

There is one on top of the bridge and another one on the CIWS.

View attachment 82249


Similar product for civilian use.

View attachment 82250

Please, Log in or Register to view URLs content!


Similar products from other countries for comparison.

Please, Log in or Register to view URLs content!

View attachment 82252

View attachment 82251

There are a total of three in this 054A. One on top of the bridge, one with the gunnery radar and another on the side of the mast.

View attachment 82253


There is also a camera on the Type 344 gunnery radar used with the destroyers. This enables the radar to track the target visually and aim the main guns at it. Even the outdated Type 345 fire control radar for the HQ-7 system has EO camera which lets the missile to be guided visually.


View attachment 82254
Click to expand...
Thanks! I was looking for something more of a master, 360 degree view, console, similar to this one



Please, Log in or Register to view URLs content!


Last edited:
T

Tam

Brigadier
Registered Member
EOTS-IRST-FLIR balls like you see on the Chinese ships and the Azelsan example are already a fully 360 degrees, all around view. Balls are the most common FLIR designs.

bill-mcknight-managing-engineer-manager-at-flir-systems-checks-operations-on-the-star-safire-h...jpg


Plus there are others. This one is from Koxinga at the CDF. The item on the left side is an IRST and I think I may have seen that on a number of ships, like some 052D but not all. (Our discussion with the picture centers on a completely separate object---one of the picture frames shows the dual sided radar seen on the Type 075 with the export name SR68.)


Last edited:
T

Tam

Brigadier
Registered Member
It also differs ship to ship.


Here, you see the ball like EOTS near the Sailor SATCOM. The SATCOM is to provide satellite internet.

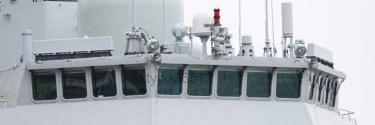

But here the EO systems are much different. You can see four camera systems on the left and on the right side on top of the bridge, right below the perspective of the decoy launchers. I don't know what is the vintage of the ship above and but the lower one (#131) belongs to the newer batches due to the shape of the ESMs that happens to be near the camera systems.



T

Tam

Brigadier
Registered Member
Once again, ball is used here. Older ship.



Cameras with longer housings used here. Newer ship. Reasons to the change are unknown.



by78

by78

General
Just a nice image for the weekend.


D

defenceman

Junior Member
Registered Member
Hi why the empty shells having different colours while being manufactured or is it due to some erosion around the casing. If possible to answer
thank you

T

Tam

Brigadier
Registered Member
PeregrineFalcon said:
I wonder what they do with the empty casings, throw them into the sea or bring back to recycle/reuse?
Click to expand...

Probably recycle them. But the shells fired from ships with the CIWS located amidships, e.g. 054A, 051B, 052B, the shells are lost at sea as there is no place to catch the shells.
