Both Columbia & Dreadnought classes use X-tail rudders according to their latest renders so I guess it's not entirely unlikely .)


Blitzo

Lieutenant General
Staff member
Super Moderator
Registered Member
Both Columbia & Dreadnought classes use X-tail rudders according to their latest renders so I guess it's not entirely unlikely .)

Yes the application of X tail rudders on submarines in general is well long established, just to name a few existing in service classes:
- Type 212/214
- Collins/A17 class
- Soryu/Taigei
- new Suffren SSN of France

And the next gen Columbia and Dreadnought SSBNs will both use X tails, and chances are the next gen SSNX and SSNR of the US and UK respectively will use X tails too.
USS Albacore tested it fairly extensively back in the 1960s.


To clarify -- what I meant with regards to me not being sure if the procurement document is related to 09V or 09VI, is I'm not sure if the specs of the control rudder system is suitable for a proper submarine, or if it may be for something like a large UUV instead.
That's why I copied it over for a record just in case.


para80

Junior Member
Registered Member
Walrus class is another prominent older example.

There are various advantages. Hydrodynamic flow over control surfaces is improved as they sit free of the centreline and eg the sail influencing flow. This also frees up the centreline to eg haul a sonar. They make unintentional grounding in shallow waters somewhat less likely and are useful if the design designed to sit on the seabed (A26 and 212A are examples). On the downside they are a more complex control mechanism. Thanks to modern tech they appear to establish themselves as a bit of a standard now.


by78

General
This might be of some relevance here.

A procurement document from Huludao shipyard that seeks thermal insulation claddings (made of silicate composites?) for submarine steam turbine and other equipment. The claddings are to be fabricated according to engineering drawings. The total surface area to be covered is around 100 square meters of magnesium-steel alloy weighing some 800kg(?). The winner of the bid will also be responsible for installing the claddings.


Last edited:

Kalec

Junior Member
Registered Member

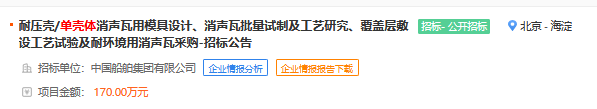

CSSC is auctioning "Mould design for pressure hull/single-hulled anechoic tile, anechoic tile batch trial production and process research, covering layer process test and anechoic tile procurement for environmental resistance."

Very likely to be 095 related.



VESSEL

Junior Member
Registered Member
Another auction yesterday. The Huludao shipyard is auctioning tools for installing "X-shaped stabilizer wing tails(?)". Dunno what it exactly is.

Could be tool to install this part.

View attachment 110940
Please, Log in or Register to view URLs content!
Stabilizer wing is X-shaped like suffren class.
X-rudder is not full motion.

Last edited:
