J-15 carrier-borne fighter thread

[Deino]

@Deino

A new should patch? It appears to have a tiger on it. These are J-15 pilots.

Indeed ... but no idea yet!?



[Deino]

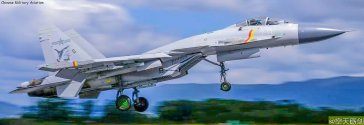

We know a few details of the improved J-15B just like parts from a puzzle, but a full images of that bird are still rare.

Here one more ...

(Image via @乌龙红茶派 from Weibo)



[Deino]

We know a few details of the improved J-15B just like parts from a puzzle, but a full images of that bird are still rare.

Here one more ...

(Image via @乌龙红茶派 from Weibo)

View attachment 106659

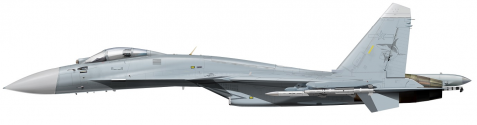

PS: ... Here an artwork based on the few known images of the J-15B and drawn for my latest book by Ugo Crisponi / @AVIATIONGRAPHIC



[HighGround]

PS: ... Here an artwork based on the few known images of the J-15B and drawn for my latest book by Ugo Crisponi / @AVIATIONGRAPHIC

View attachment 106671

Which has been fantastic by the way. Working through it, but it has a really great narrative flow, while packing in lots of detail and great artwork/images.



[by78]

We know a few details of the improved J-15B just like parts from a puzzle, but a full images of that bird are still rare.

Here one more ...

(Image via @乌龙红茶派 from Weibo)

View attachment 106659

The wingtip pylon design looks new. Some Weibo users suggest it might be the same design as described in the design patent below (2nd image).



[Deino]

The wingtip pylon design looks new. Some Weibo users suggest it might be the same design as described in the design patent below (2nd image).

Isn't this the regular pylon as used on the J-16?



[by78]

Isn't this the regular pylon as used on the J-16?

View attachment 106734

They don't look the same as on previous Sino-Flanker variants.



[lcloo]

Looks like similar to J15/J11B's wingtip pylon but minus the "upper step" part.



[Deino]

And with J-15 no. 79, the last gap is now clearly closed ... so that all machines are documented from No. 60 to 92*. Come on, SAC and PLAN … and now show us the J-15B! *PS: strange however is that this is an uneven number (33), so I expect at least one more J-15.



[Hitomi]

And with J-15 no. 79, the last gap is now clearly closed ... so that all machines are documented from No. 60 to 92*. Come on, SAC and PLAN … and now show us the J-15B! *PS: strange however is that this is an uneven number (33), so I expect at least one more J-15.

View attachment 106782

Probably not until the Fujian has fitted out.
